← All Products / Electric Pallet Trucks

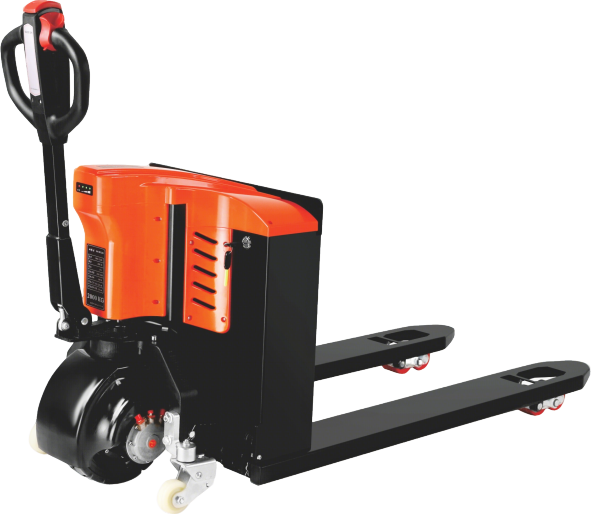

3.0 ton all-electric pallet truck with a reinforced frame and high-torque drive — for heavier pallets and demanding shift work. Battery options 32 / 45 / 52 Ah; fork lengths 1.2 / 1.5 / 1.8 / 2.0 m.
- Rated Capacity: 3,000 kg
- Power: Electric — 48V, 32 / 45 / 52 Ah
- Motor Power: 1.5 kW
Key Features
- Rated Capacity: 3,000 kg
- Motor Power: 1.5 kW
Specifications
| Rated Capacity | 3,000 kg |
| Power | Electric — 48V, 32 / 45 / 52 Ah |
| Motor Power | 1.5 kW |
| External Dimensions (L×W×H) | 1750 × 680 × 1240 mm |
| Dead Weight | 210 / 223 / 230 kg |
| Fork Size (L×W) | 1210 × 680 mm |
| Fork Length Options | 1.2 / 1.5 / 1.8 / 2.0 m |
| Width Options | 550 / 680 mm |
| Fork Lifting Height | 115 mm |
| Drive Wheel (optional) | 290×80 TPU / 300×90 solid rubber |
Applications
Warehouses, distribution centers, factories, and logistics operations that move pallets horizontally over short to medium distances — including loading bays, production lines, and container handling.
Configuration Options
Fork lengths from 1.2 to 2.0 m and widths of 550 / 680 mm, lead-acid or lithium battery, PU or nylon wheels, and color options. Available configurations may vary by model.
Variants
Download the full specification sheet — available on request via info@tkiforce.com.
