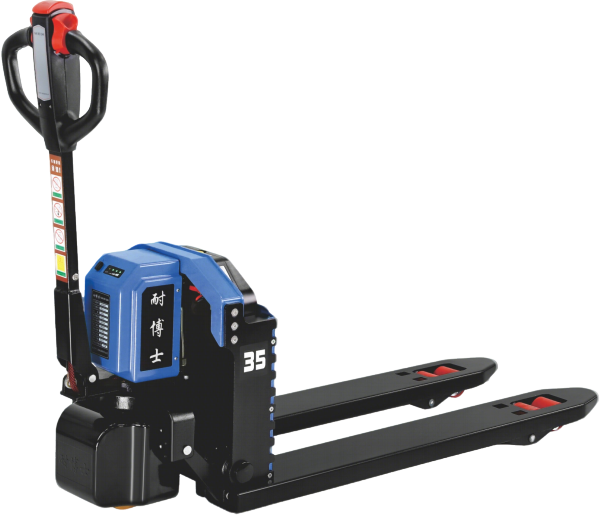

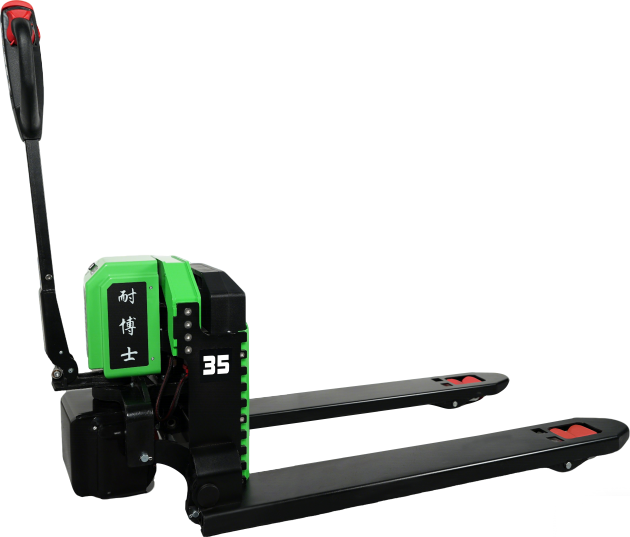

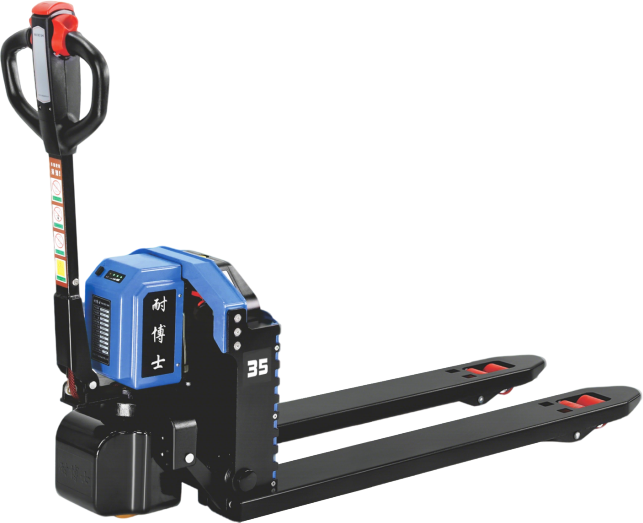

Heavy-duty 3.5 ton electric pallet truck for industrial loads and containers — reinforced chassis with lithium iron phosphate battery and multiple fork-size options. Fork length options 1.2–2.0 m.
- Rated Capacity: 3,500 kg
- Power: Electric — 48V, 30Ah lithium iron phosphate (LiFePO4)
- Motor Power: 1.2 kW
- Tire Type: PU / Nylon
Key Features
- Rated Capacity: 3,500 kg
- Motor Power: 1.2 kW
Specifications
| Rated Capacity | 3,500 kg |
| Power | Electric — 48V, 30Ah lithium iron phosphate (LiFePO4) |
| Motor Power | 1.2 kW |
| External Dimensions (L×W×H) | 1580 × 680 × 1240 mm |
| Dead Weight | 176 kg |
| Fork Size (L×W) | 1150 × 680 mm |
| Fork Length Options | 1.2 – 2.0 m |
| Width Options | 550 / 680 mm |
| Fork Lifting Height | 115 mm |
| Tire Type | PU / Nylon |
| Colors | Orange / Blue / Green |
Applications
Warehouses, distribution centers, factories, and logistics operations that move pallets horizontally over short to medium distances — including loading bays, production lines, and container handling.
Configuration Options
Fork lengths from 1.2 to 2.0 m and widths of 550 / 680 mm, lead-acid or lithium battery, PU or nylon wheels, and color options. Available configurations may vary by model.
Variants
Download the full specification sheet — available on request via info@tkiforce.com.
