← All Products / Electric Pallet Trucks
5.0 ton heavy-duty electric pallet truck for the toughest loads — including a weighing-scale version for check-weighing on the move. Lithium iron phosphate battery, reinforced forks.
- Rated Capacity: 5,000 kg
- Power: Electric — 48V, 40Ah lithium iron phosphate (LiFePO4)
- Motor Power: 1.5 kW
- Tire Type: PU / Nylon
Key Features
- Rated Capacity: 5,000 kg
- Motor Power: 1.5 kW
Specifications
| Rated Capacity | 5,000 kg |
| Power | Electric — 48V, 40Ah lithium iron phosphate (LiFePO4) |
| Motor Power | 1.5 kW |
| External Dimensions (L×W×H) | 1580 × 680 × 1240 mm |
| Dead Weight | 181 kg |
| Fork Size (L×W) | 1150 × 680 mm |

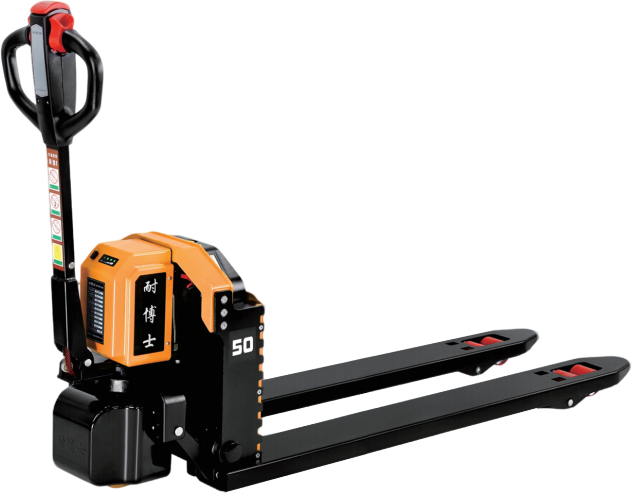

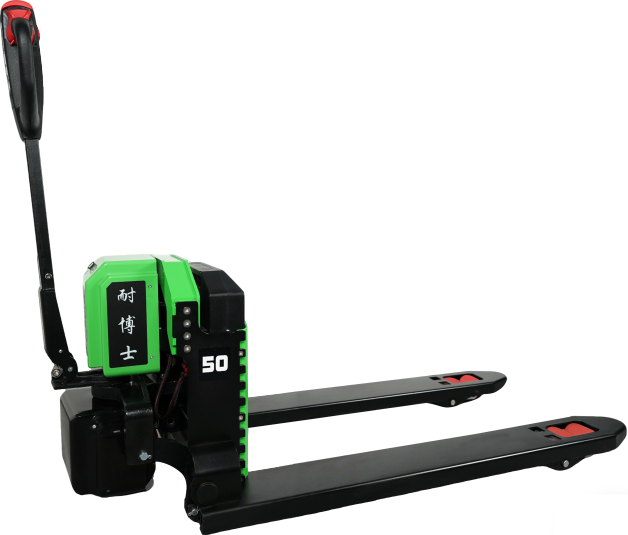

| Fork Length Options | 1.2 – 2.0 m |
| Width Options | 550 / 680 mm |
| Fork Lifting Height | 115 mm |
| Tire Type | PU / Nylon |

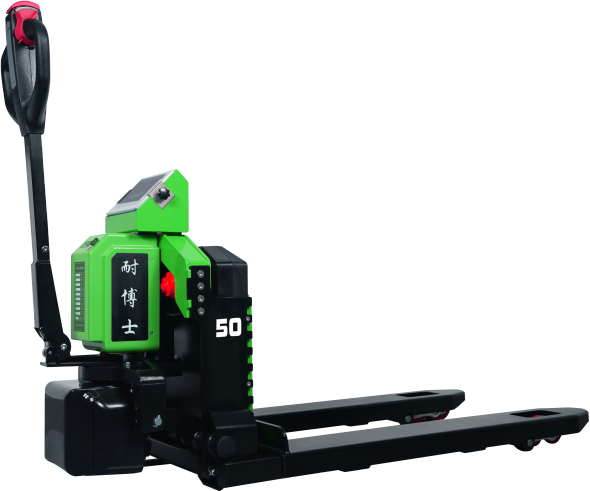

| Options | Built-in weighing scale |
Applications
Warehouses, distribution centers, factories, and logistics operations that move pallets horizontally over short to medium distances — including loading bays, production lines, and container handling.
Configuration Options
Fork lengths from 1.2 to 2.0 m and widths of 550 / 680 mm, lead-acid or lithium battery, PU or nylon wheels, and color options. Available configurations may vary by model.
Variants
Download the full specification sheet — available on request via info@tkiforce.com.
